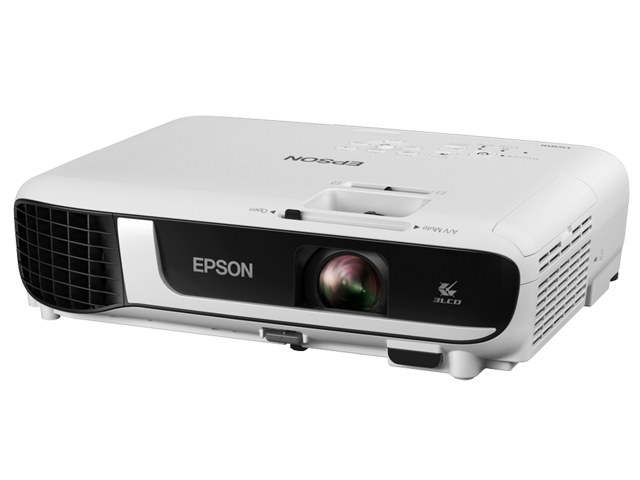

Create engaging classroom displays with the dynamic EB-X51 projector. Offering advanced 3LCD technology, this ultra bright projector delivers eye-catching, 3,800-lumen displays with native XGA resolution. Designed to enhance in-class collaboration, the EB-X51 projects from smart devices and laptops,and features a built-in Moderator function that allows up to 50 users to connect to the display simultaneously 3(using iprojection).
- 3,800 lumens of color and white brightness1
- Native XGA resolution and 4:3 performance
- Long lamp life up to 12,000 hours in ECO Mode
- Built-in Moderator function3 for easy sharing using iProjection
- Advanced network connectivity
- Projection Technology: RGB liquid crystal shutter projection system (3LCD)
- White Light Output (Normal/Eco): 3,800 lm
- Colour Light Output: 3,800 lm
- Dimensions Excluding Feet (W x H x D): 302 x 77 x 234 mm
- Contrast Ratio: 16,000:1
Screen Size (Projected Distance):
- Tele: 30” to 300” [1.07 to 10.95 m]
- Wide: 30” to 300” [0.89 to 9.12 m]
Connectivity:
- USB Interface: USB Type A: 1 (For Wireless LAN, Firmware Update, Copy OSD Settings); USB Type B: 1 (For Firmware Update, Copy OSD Settings)
- Network: Wireless: Optional (ELPAP11)
- Analog Input - Composite: 1 RCA
- Analog Input - D-Sub 15pin: 1
- Digital Input: HDMI: 1 (MHL not supported)
- Audio Input: 2 RCA: 1
Projectors Facets:
- Resolution: XGA
- Contrast Ratio: 16,000:1
- Brightness Range Lumens: 2000
- Features: Wifi; Quick Corner
- Laser / Lamp: Lamp
Specifications of Main Parts:
- LCD: Native Resolution: XGA (1024 x 768); Size: 0.55” (C2fine)
- Lightsource: Type: 210W UHE; Life (Normal / Eco): 6,000 / 12,000 hours
- Aspect Ratio: 4:3
- Projection Lens - Type: Optical Zoom (Manual) / Focus (Manual)
- Projection Lens - F-Number: 1.49 – 1.72
- Projection Lens - Focal Length: 16.90 – 20.28 mm
- Projection Lens - Zoom Ratio: 1 – 1.2
- Projection Lens - Throw Ratio: 1.48 – 1.77 (Wide to Tele)
