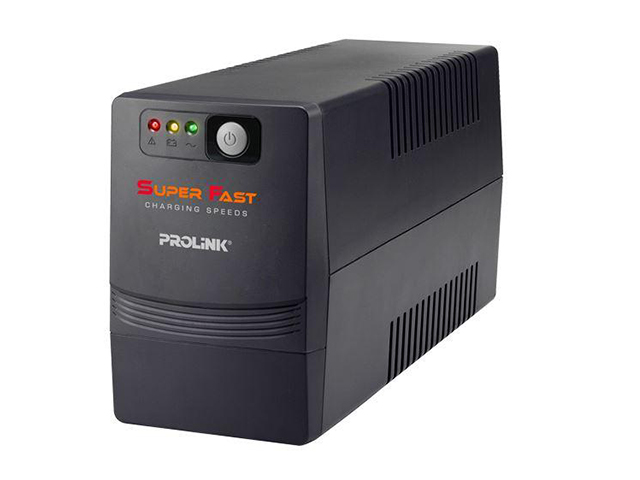

PROLiNK SFC series is a single-phase input/ single-phase output Line-Interactive UPS system with PROLiNK’s latest Super-Fast Charging technology. This cutting-edge technology is able to recharge the battery back to 90% of its capacity within 2-4 hours, and is ideal for providing stable backup power to home/ small office applications. A wide input voltage range is supported due to the integrated 3-Step AVR which features 2 boosts and 1 buck to regulate output voltage.
Intelligent Battery Managment
Microprocessor Control
Super Fast Charging
True 3-Step AVR
Generator Compatible
Wide Input Voltage
Capacity: 650VA
INPUT
Nominal Voltage: 230VAC
Voltage Range: 140 - 300 VAC ± 5%
Nominal Frequency: 50 or 60Hz (Auto sensing)
OUTPUT
Voltage Regulation: ± 10%
Frequency: 50 or 60Hz ± 1Hz
Transfer Time (typical): 2 - 6ms
Waveform: Simulated Sinewave
Number of Battery: 12 V/8.2 Ah x 1
Recharge Time (typical): 2-4 hours recover to 90% capacity
LED Display: AC Mode - Green Lighting
Battery Mode Rear Panel: AC input
Backup Outlets: USB Port (Only available in PRO700SFCU)
